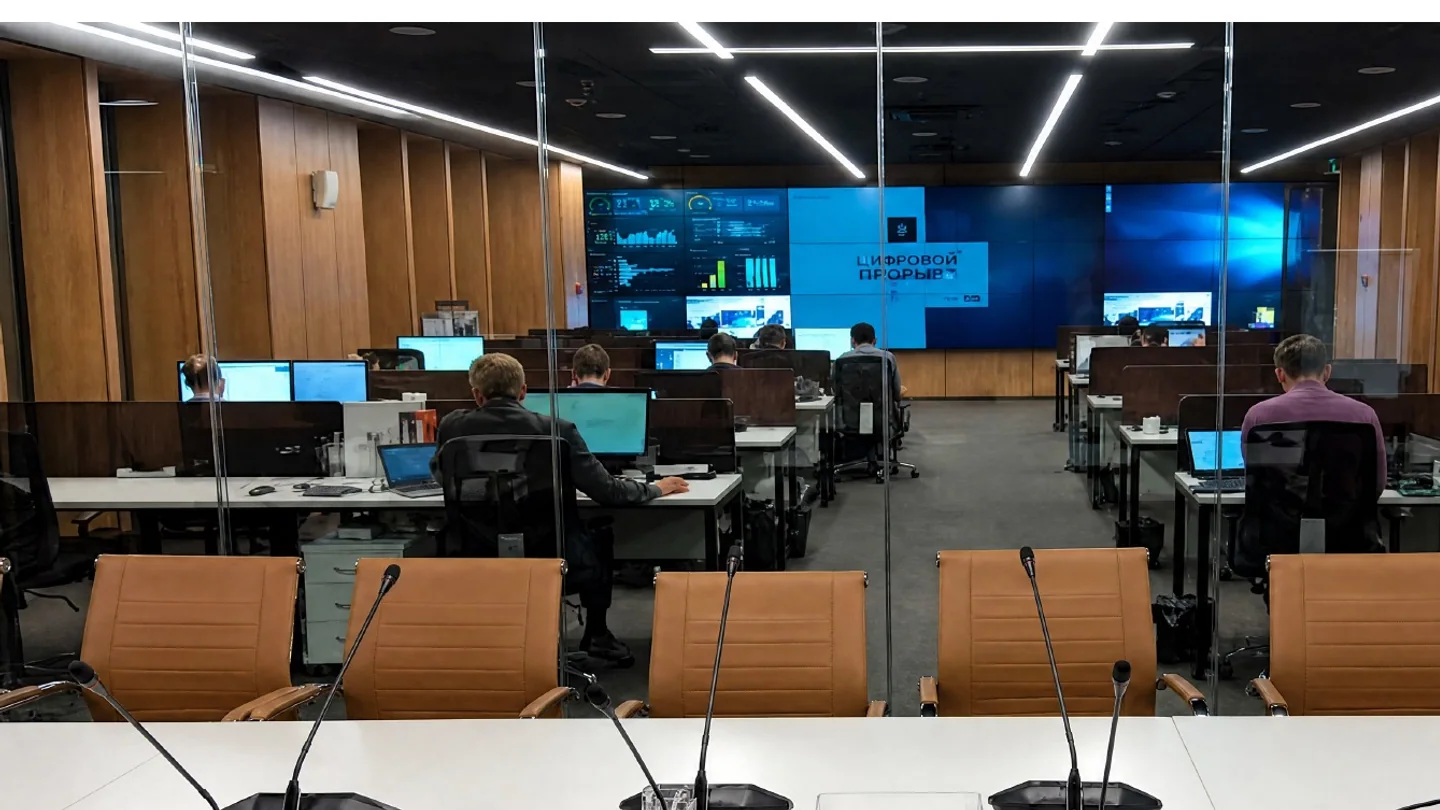

Cyber operations
Many remote sources, one operational picture
Distributed IP feeds and workstations are composed into a stable shared workspace for continuous monitoring.
Purpose-built video wall controller
Linux video wall control for mission-critical operations
See the wall. Control every source. Stay on your network.
FACET combines HDMI feeds, IP streams, remote desktops, web applications and documents on one clearly visible video wall — with operator control designed for 24/7 environments.
Project-specific configuration · On-premises operation
24/7 READYon-premises platform
32DisplayPort outputs, maximumDrive large LCD, LED or projection canvases
12HDMI 1.4 / 2.0 inputs, maximumDirect sources up to 4096×2160 60p
≤60 msDirect HDMI input latencyMaximum direct-input-to-display delay
36 moStandard product warrantyThree years of standard product coverage
Proven environments
See FACET where decisions happen
Real deployments are shown without identifying the customer. Each project combines a different wall, source mix, control workflow and security landscape.

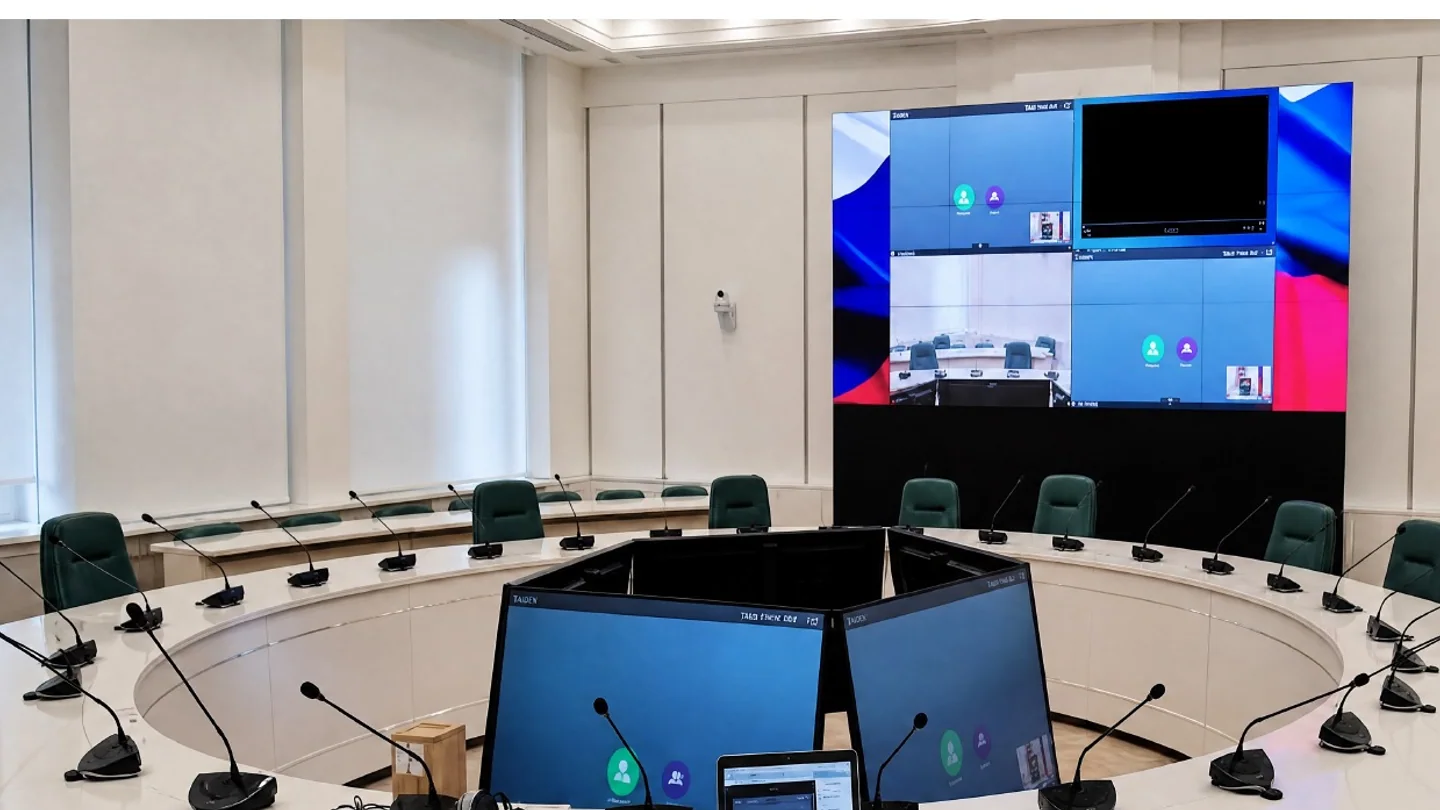

Situation room
Video collaboration integrated into the room
The wall, local displays, conference sources and room controls work as one project-specific environment.

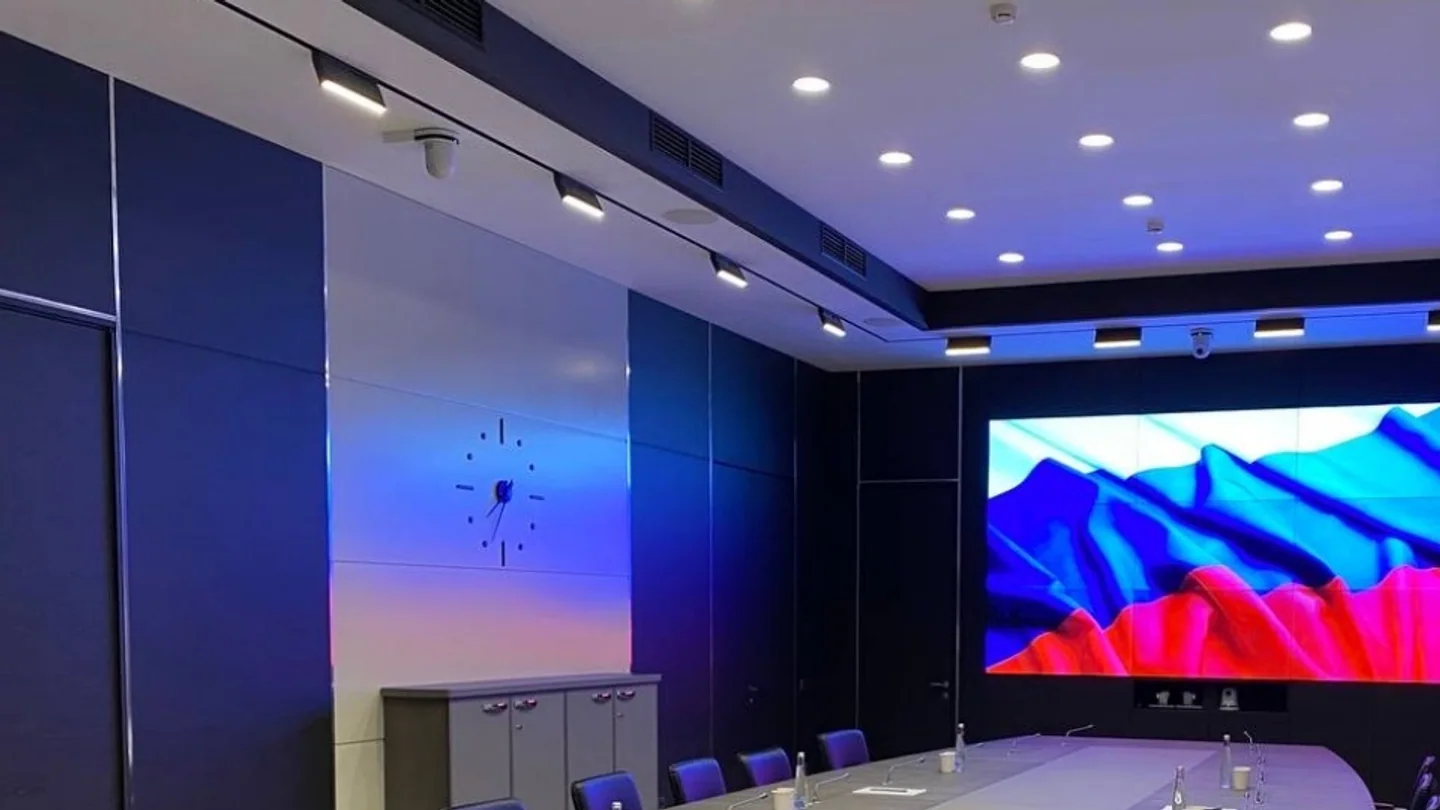

Executive collaboration
A clear wall for briefings and shared decisions
FACET adapts multi-window presentation and recall workflows to the room instead of imposing a fixed layout.

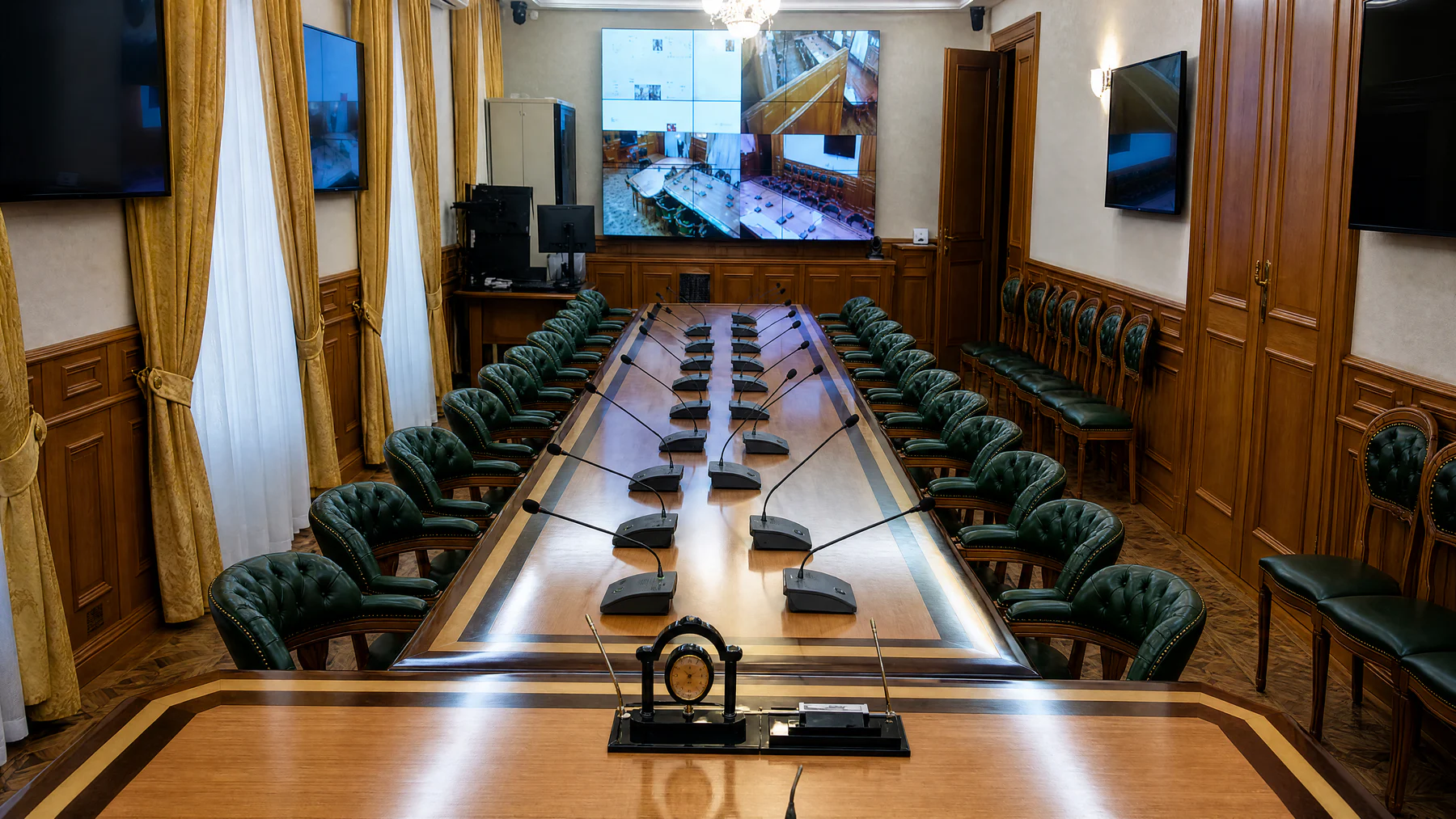

Built for project systems
Built to fit the project
Four project-level advantages that let FACET enter the customer's AV, IT and security environment without forcing the environment to adapt to the product.
Project configuration
I/O, wall geometry and operator workflows are selected around the system design.
- Up to 12 direct HDMI inputs
- Up to 32 DisplayPort outputs
- LCD, LED and projection walls
Localisation
The operator interface can follow the language and terminology of the deployment.
- Russian, English and French delivered
- Additional project languages
- Terminology adapted with the customer
Security landscape
FACET integrates into the customer's identity, certificate and HTTPS policies.
- 802.1X authentication
- Client and server certificates
- Role-based access
Open integration
Control remains available to AV, automation and infrastructure tools.
- REST API and HTTPS
- RS-232 / RS-485
- Third-party control systems
Latest
Discuss the product roadmap→FACET product journal
25 Aug 2026 · Product update

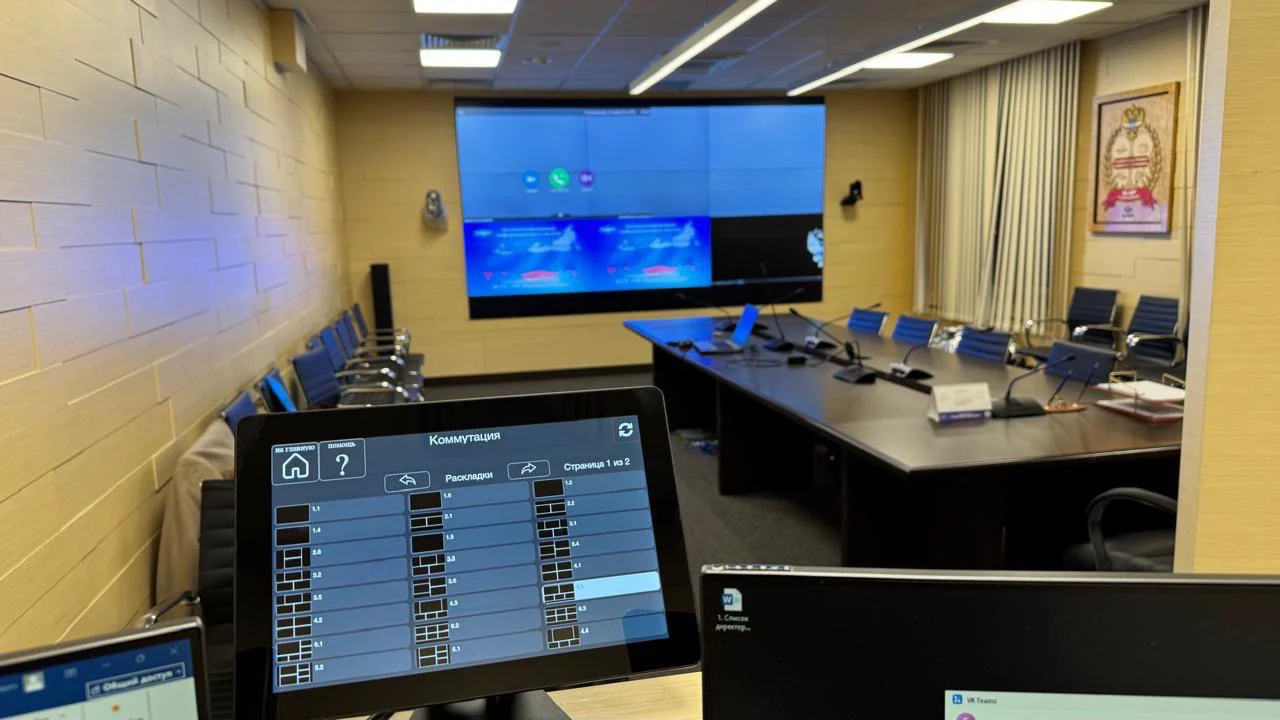

Linux platform, new functions and a live FACET test drive
The latest product session demonstrated new operator workflows, platform functions and the demo-room programme.
Talk to the FACET team →
09 May 2026 · Engineering programme
Certified technical workshops for FACET projects
Hands-on sessions help system designers and integrators move from source lists to a verified working configuration.
Talk to the FACET team →Field development · 2025–2026
Operating experience feeds the next FACET release
Real 24/7 deployments shape monitoring, recovery, localisation and operator-control improvements.

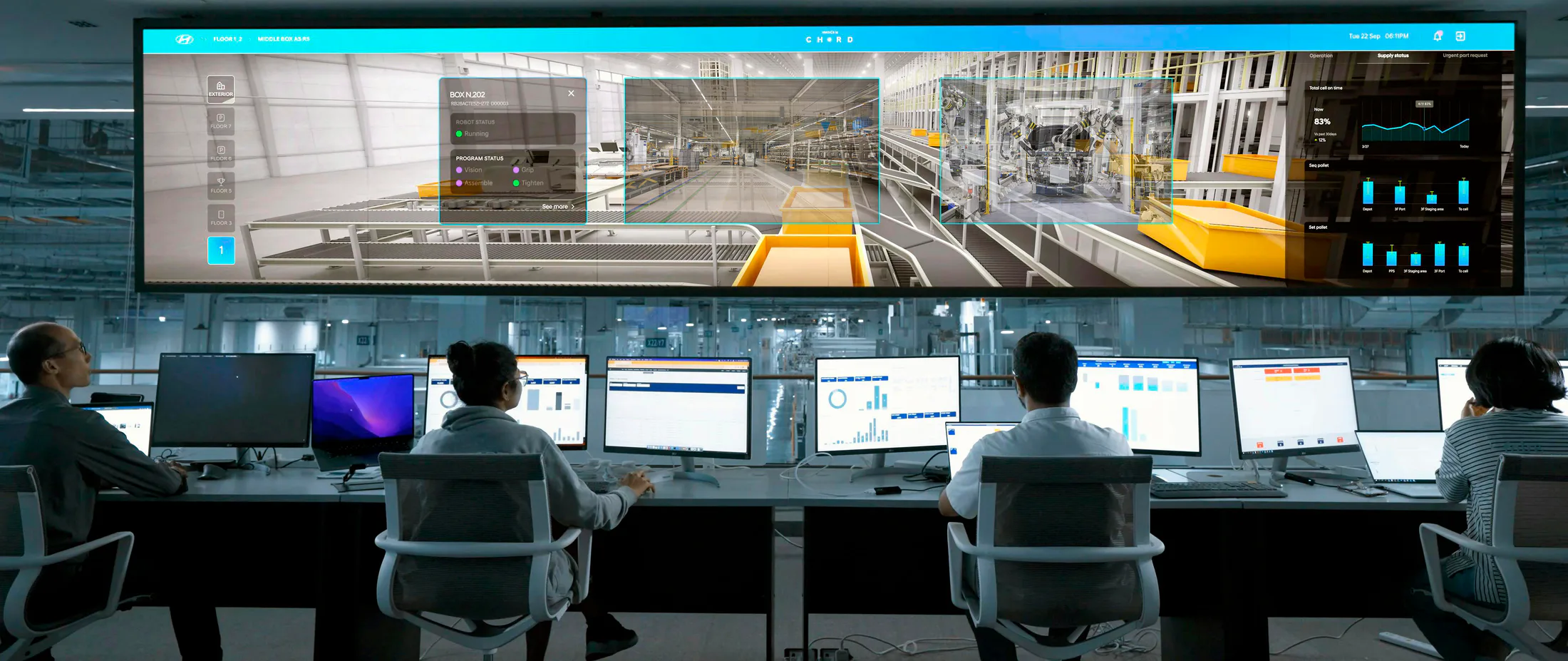

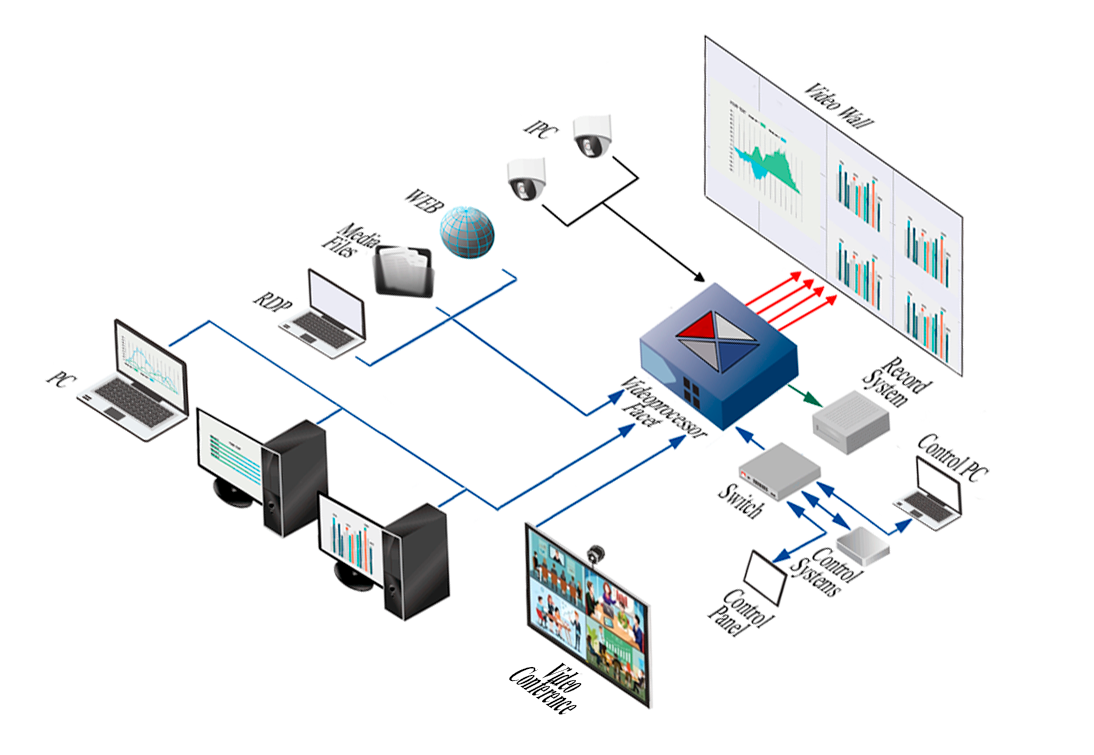

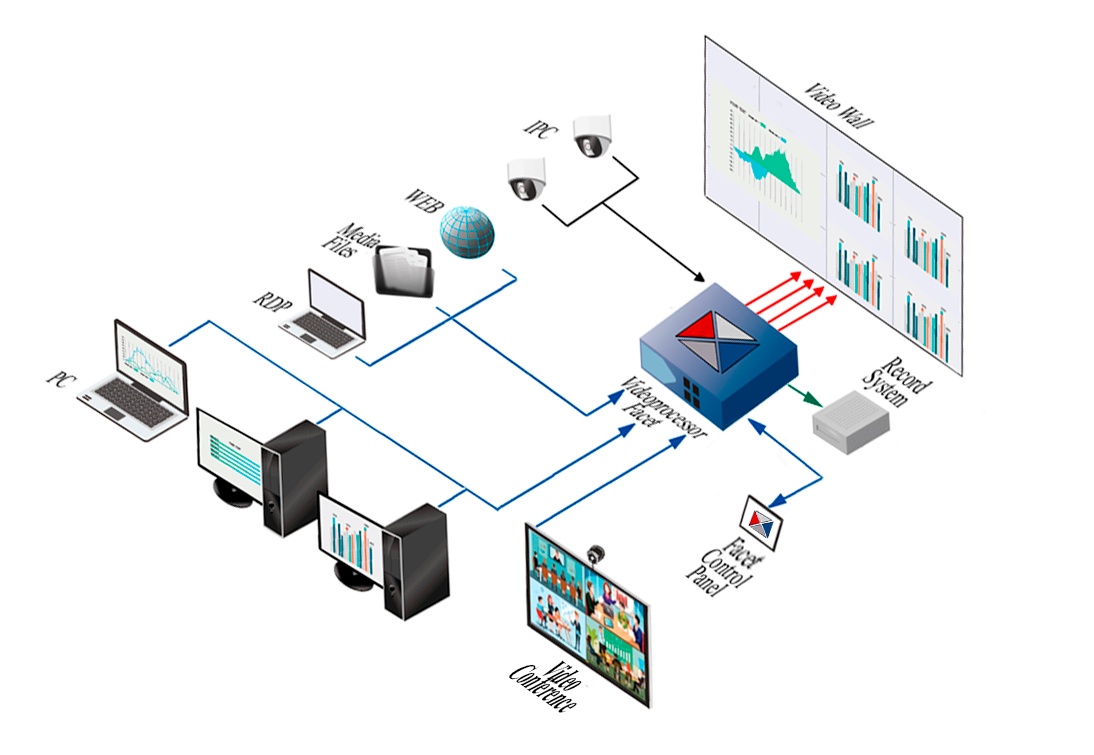

Talk to the FACET team →System architecture
A readable path from source to decision
Choose a source category, then follow the complete system map from content acquisition through FACET processing to the wall and operator controls.
Physical inputs
Direct video sources
HDMI 1.4 / 2.0 inputs up to 4K60, with YUV 4:4:4, 4:2:2 and 4:2:0 support.
- Cameras
- Operator PCs
- Matrix outputs
- Conference systems
Network video
IP streams
Receive H.264, H.265 and MPEG-2 video through supported RTSP, RTP, UDP and HTTP transports.
- IP cameras
- Encoders
- Broadcast feeds
- Monitoring streams
Remote systems
Workstations and applications
Display Windows and Linux remote desktops, VNC sessions and browser-based operational applications.
- RDP
- VNC
- Web applications
- Dashboards
Content
Files and information layers
Place video, images, PDF documents, web pages, tickers, captions and logos into operator layouts.
- MP4 / AVI
- JPEG / PNG
- Tickers and labels
SOURCESPhysical inputsDirect video sources Network videoIP streams Remote systemsWorkstations and applications ContentFiles and information layers
Cameras · Operator PCs
IP cameras · Encoders
RDP · VNC
PDF · MP4 / AVI
FACET control layer
Layout processing, source control, presets, access roles and platform monitoring
Display environment
Up to 32 DisplayPort outputs · LCD, LED and projection systems
Operator control
Web interface · FACET Panel Control · REST API · third-party control systems
Operational confidence
The capabilities that matter after the wall goes live
Performance is only one part of a mission-critical system. FACET combines daily operation, resilience, integration and IT controls.
01
Operate
Build and recall the exact visual workspace each operator needs — without treating the wall as a fixed grid.
- Unlimited layouts and scenarios
- Free-form multi-window canvas
- Source crop, scale and positioning
- Browser and touch-panel control
02
Keep running
Protect the operational picture with platform health visibility, redundant hardware and workspace recovery.
- 24 / 7 / 365 operating mode
- Hot-swappable redundant power
- Built-in diagnostics and monitoring
- Automatic workspace recovery
03
Integrate
Connect the video wall to the wider AV, automation and IT environment using project-appropriate interfaces.
- REST API over HTTPS
- RS-232 / RS-485 control
- Third-party control systems
- Optional 10 Gbit/s networking
04
Control access
Apply the customer's security requirements while keeping media processing and control on premises.
- Role-based access
- Client and server certificates
- 802.1X authentication
- HTTPS management stack
Field experience
Developed through live control-room projects since 2015
FACET has evolved through deployments in transport, government, cybersecurity, industrial training and corporate situation centres. Each generation added capabilities requested by real operators and infrastructure teams.
2015First industrial deployment
24/7Designed operating mode
RU · EN · FRDelivered interface localisations
Verified specifications
A configurable platform for project-scale video walls
The final I/O, chassis and software configuration is selected after a design review.
Configured, not improvised

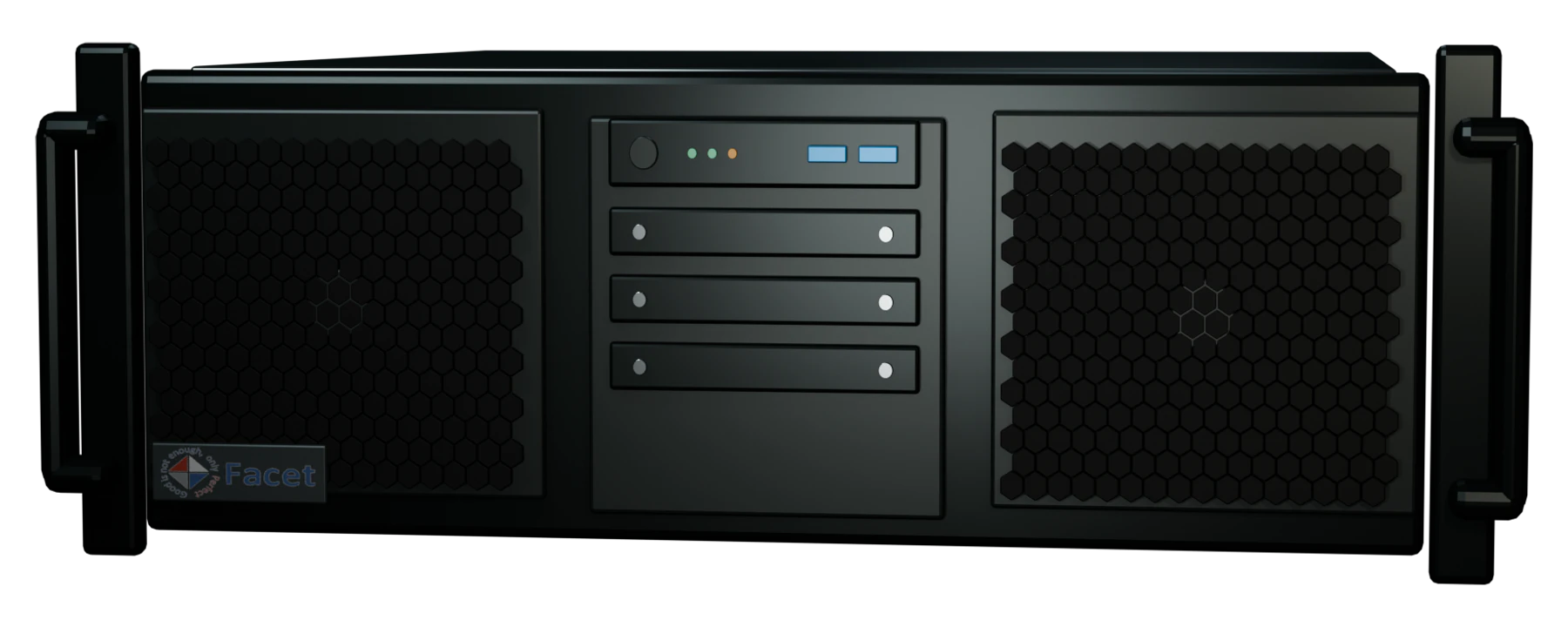

One 4U platform, engineered around the project
FACET is configured from the project brief: source formats, wall geometry, resilience requirements and integration interfaces define the delivered system.
Input and output capacity is selected from the source list and wall geometry.
Redundant hot-swappable power and platform diagnostics support 24/7 use.
Layouts, presets, access roles, monitoring and integration run on the FACET platform.
Direct inputsUp to 12 × HDMI 1.4 / 2.0
Source resolutionUp to 4096×2160 60p
OutputsUp to 32 × DisplayPort
Network2 × 1 Gbit/s RJ-45, optional 10 Gbit/s
Video codecsH.264, H.265, MPEG-2
ControlOperator and admin web UI, panel, REST API
PowerTwo hot-swappable redundant PSUs
Form factor19-inch rack, up to 4U
Engineering resources
Start the technical conversation with real project inputs
Review the connection diagrams or send the wall dimensions and source list to receive a recommended configuration.
Project questions
What integrators and operators usually ask first
01Is FACET a video wall controller or a matrix switcher?+
FACET is a video wall controller and processor with multi-window composition. It can also perform modular matrix switching as part of the configured workflow.
02Which display technologies are supported?+
FACET works with display systems accepting its supported output formats, including LCD panels, LED processing systems and projectors. The output design is validated for each project.
03Can FACET be integrated with an existing control system?+
Yes. FACET provides a REST API and supports integration with third-party control systems. The required command set is reviewed during system design.
04Can the interface be localised?+
Yes. FACET has been delivered with Russian, English and French interfaces, and additional project localisation can be discussed.
05How is the configuration selected?+
The engineering team reviews the number and type of sources, wall geometry, resolutions, network streams, redundancy and operator scenarios before recommending the final configuration.
Live product review
Bring your wall plan. We will map the FACET configuration.
Share the display geometry, source list and operating scenario. The FACET team will review the project and arrange a live demonstration.
